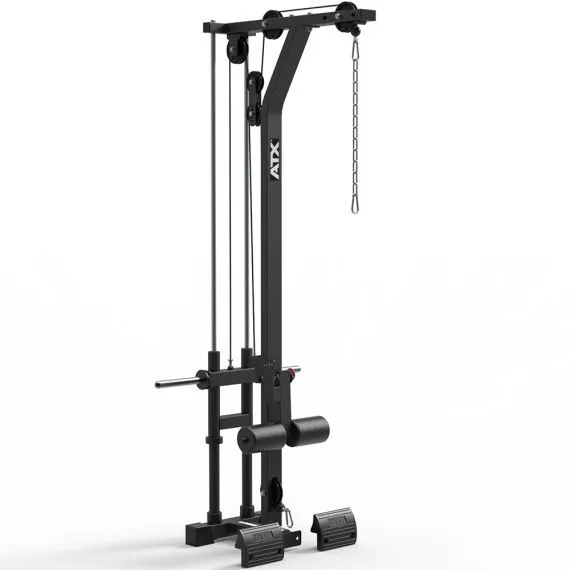

LTO-650 Plate-Load Lat Machine Option (for PRX-650/ PRX-720)

ATX ® lat pulldown option LTO-650-PL

Lat pull attachment option Plate Load, to expand our equipment –

ATX ® Power Rack – PRX-650
ATX ® Power Rack – PRX-720

The lat pull-down attachment option ATX-LTO-650-PL is a high-quality lat pull-down station with a weight plate holder for attachment to the equipment mentioned above. Equipped as standard with weight plate holders with a diameter of 30 mm, the device can be quickly and easily converted to 50 mm with our optionally available adapters (item no .: BB-OA-250-PVC). A variety of pulling exercises can be carried out using the upper and lower pulley without modification. The adjustable knee pad support and the footrests ensure safe positioning when pulling down or when rowing while sitting. Thanks to the sturdy construction, the device can take loads of up to 160 kg! Due to the direct weight ratio of 1: 1 there is no loss of load / no pulley effect! Weight slide guide via 2 chrome-plated solid steel shafts,

Quality Products Designed in Germany – Certified according to EN 20957 I.II.IV Class S

• heavy duty – up to 160 kg
• no loss of load due to direct weight transmission 1: 1
• Upper and lower pulley can be used without modification
• Silky smooth running properties thanks to plastic plain bearings and ball-bearing pulleys, chrome-plated guide rods made of 20 mm thick solid steel
• Stretch-free steel ropes with black plastic protective coating
• Knee pad support for secure fixation when pulling down the lat pulldown – height adjustable
• With sturdy foot chucks for safe support when rowing while sitting
• Including extension chain for hanging various pull handles and for setting the optimal pulling position
• incl. 3 snap hooks
• Weight plate holder standard Ø 50 mm x L 21.5 cm.
• with rubber feet, floor-protecting and non-slip
• Extension: 199 cm – height from floor to ring eyelet / upper roller
• Total height: 214 cm
• Load capacity: 160 kg
• Dead weight: 48.5 kg

The handles / accessories shown are not included in the scope of delivery. Sold separately.
